APX Sheet Label (sensormatic)
The premier choice in label performance and merchandise protection.
The Advanced Performance Xtreme (APX) Sheet Label delivers top-of-the-line performance and superior merchandise protection using proven Sensormatic technology. The APX Label provides exceptional range, sensitivity, tamperresistance,detection and consistent deactivation at the point-of-sale (POS) with virtually no nuisance alarms. This robust and stable AM EAS label operates efficiently after exposure to environmental stresses, including shipping and handling. Available for in-store hand application, this label can also be applied to merchandise at the point of manufacturing so retailers can receive floor-ready merchandise with consistent label placement-expediting receiving and selling floor fulfillment.
Retailer Values
// Utilizes proven Sensormatic AM technology and manufacturing process to provide reliable detection performance
// Quality materials and precision manufacturing help deliver consistent deactivation at the POS
// Small label footprint minimizes impact on brand promotion and important product information
// Robust construction provides optimal merchandise protection
// Works well on liquids, foils and in metal shopping carts
// Reactivatable for unlimited reuse

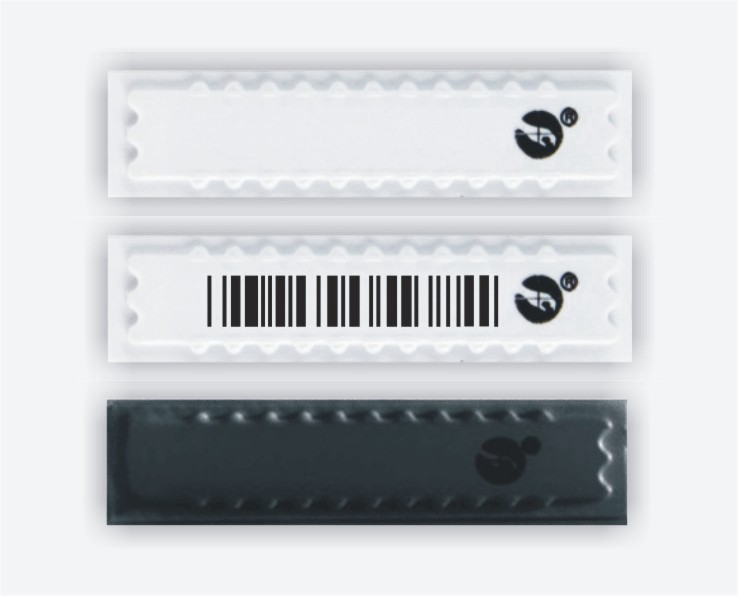

Product Codes
ZLAPXS1: White
ZLAPXS2: Mock Barcode
ZLAPXS5: Black
Technology
AM
Product Compatibility
Sensormatic AM detection and deactivation devices.
Environmental Constraints
Temperature
Maximum storage temperature not to exceed 50°C (122°F) for 96 hours at 80% RH.
Humidity
Unaffected by 80% humidity at 50°C (122°F), up to 96 hours.
Shelf Life
Two years from date of manufacture when labels are stored between 15°C-32°C (60°F-90°F), 30-80% RH.
Mode of Application
Hand
Materials of Construction
Plastic Substrate
Polystyrene/Polyethylene 0.254mm (0.010in) thickness
Magnetic Acoustic Resonator
Proprietary resonant magnetic material Amorphous alloy based on iron, containing nickel, cobalt, boron and silicon
Laminate
Low Density Polyethylene/Polyester 0.101mm (0.004in)
Bias
Proprietary semi-hard magnetic material containing iron and nickel
Adhesive
Double-coated, rubber-based adhesive:
// 2.4 mil thick each side
// Minimum peel strength of 2.27kg/5lbs/in.
Release Liner
Double-sided, silicon-coated 80lb. bleached Kraft liner 0.114mm (0.0045in) thick.
Dimensions
Color …………White, Mock Barcode, Black
Length……………………45.21mm ± 0.5mm (1.78in ± 0.020in)
Width …………………….10.67mm ± 0.5mm (0.420in ± 0.020in)
Label Thickness
(excluding liner)……………………. Maximum 1.89mm (0.074in)
(including liner)…………………….. Maximum 2.00mm (0.079in)
Labels Per Sheet…………………………..108

PRODUCT CODE	ZLAPXS1,ZLAPXS2 ZLAPXS5
Case Weight	2.486kg (5.48lbs)
External Carton Dimensions	27.9 x 20 x 11cm (11 x 8 x 4.5in)
External Cubic Ft. Per Case	0.23
Cases Per Pallet	160
Order Multiple	5,000-unit case

This product and information belong to the sensormatic company, only to facilitate customers to understand their needs.
